Motorola DEP450 Series
Hammerhead G Hook

SKU D2 0805 Categories Casinos, Hospitality, Manufacturing, Security Tag Fixed Wire

$77.50

Designed with safety in mind and incorporating our Twin Microphone Technology. AFA Hammerhead Earpieces cut through the noise and send clear voice in the loudest environments.

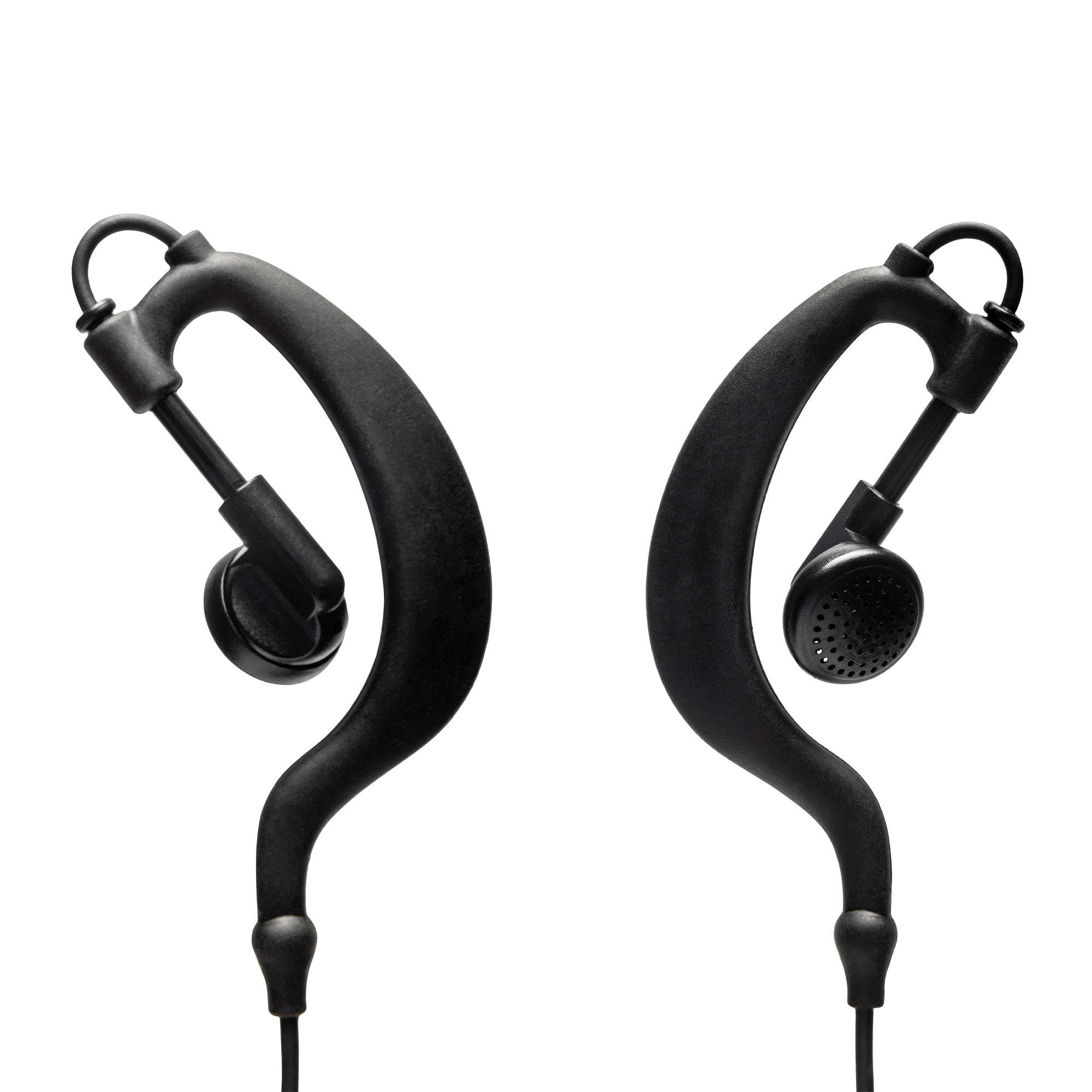

Earpiece type: G Hook

Other available fixed wire styles: Covert (Clear Tube)

Available for all major brands and models.

Additional information

Additional information

Brand	Motorola
Earpiece Type	G Hook
Voice Microphone	Omni Directional
Noise Microphone	Omni Directional
Sensitivity f=1 kHz, 1 Pa, OdB = 1 V/Pa	Min -45B Typ -42dB Max -39dB
Operating Voltage	3.3V
Voltage Range	2V – 10 V
Maximum Current Consumption @ 5V	0.001mA
Microphone Output Impedance	2.2 kΩ
Frequency	100 Hz – 20,000 kHz
Signal to Noise Ratio	81 dB SNR
Total Harmonic Distortion	0.0038% THD
Operating Temperature	-20 to 70°C
Case Material	ABS Plastic
PTT Button	Silicone
PTT Operating Force	250gf
Speaker Impedance	100Ω±15%@1kHz
Speaker Sensitivity	117dB±10%/ 1Watt @ 0.5 Metre
Resonant Frequency (Fo)	680Hz± 20%
Frequency Response	Fo – 5kHz
Rated Input Power	1.0W
Maximum Input Power	1.5W
